Security window film is often compared by brand name or thickness alone. Neither tells the whole story.
The meaningful comparison is between complete, specified glazing systems: the existing glass, the film, its adhesive, the perimeter attachment, the frame and the installation details. Raw film strength matters, but it does not by itself predict how long a window will resist a forced-entry attempt.
This guide compares XPEL VISION Security Clear 14 mil with 3M Safety & Security Window Film Safety S140. Both are interior-applied 14 mil products. It also compares wet-glaze attachment, DOWSIL 995 and 3M Impact Protection Attachment (IPA) Sealant. The test scope matters as much as any data-sheet number.
Quick answer: XPEL publishes higher raw 14 mil strength values
On the two headline, same-unit raw film-strength values published by the manufacturers, XPEL Security Clear 14 mil is higher. XPEL lists 30,000 psi tensile strength and 420 lb/in break strength; 3M lists 25,000 psi and 350 lb/in. That is a 20% difference in both published values. Only 3M's reviewed public sheet explicitly maps these figures to ASTM D882, so this is a specification-sheet comparison rather than a controlled independent head-to-head test.
That does not establish that an XPEL installation provides 20% more forced-entry delay. A real window is a system. Glass, adhesive, attachment geometry, frame strength and installation quality can all change the result. Curing and the test method also matter. Read XPEL's specification and 3M's S140 specification as component and system documentation. They do not create a universal breach-time ranking.
Download the raw-strength and optical comparison data (CSV)
Security window film explained
Security window film is a clear or tinted polymer film bonded to existing glass. When the glass fractures, the film and adhesive help retain the fragments as one damaged sheet. The practical security objective is delay. Film can keep a fast smash from creating an immediate reach-through or walk-through opening.
That is different from making glass unbreakable. The glass can still crack. A determined attacker with enough time and tools may eventually create a path through it. The International Window Film Association says proper selection, installation and attachment may slow an intruder. It does not describe film as an impenetrable barrier.
For a broader introduction before comparing brands, see our complete guide to security window film for GTA homes.
Safety film and security film
The labels overlap. Manufacturers may use “safety,” “security,” or “safety and security” for products from the same polyester family. The intended threat and tested assembly matter more than the marketing label.
- Safety glazing and glass-fragment retention: intended to reduce the hazard from broken shards after accidental impact, spontaneous breakage or seismic movement.
- Forced-entry delay: intended to retain fractured glazing during repeated attack. An attachment system usually connects the filmed pane to the frame.
- Blast mitigation: intended to reduce glass-fragment hazards under a defined pressure pulse. This is a specialist commercial or government application and must be based on a tested configuration.
- Windborne-debris mitigation: intended for defined missile impacts and pressure cycling. Regional approvals and the precise glazing assembly matter.
A product can meet one test and not be approved for another. The January 2025 S140 specification lists ANSI Z97.1 safety-glazing performance. It expressly marks windstorm and blast mitigation as not applicable for S140. A safety-impact result is not a forced-entry, ballistic, blast or hurricane result.
The main types of architectural window film
1. Clear safety and security film
Clear film preserves the appearance of the glass while adding fragment retention. Common nominal thicknesses run from roughly 4 mil to 14 mil. XPEL lists clear interior security films at 4, 8 and 14 mil; 3M lists Safety Series products at 4, 7, 8 and 14 mil. Thickness is only one variable, but within a comparable product family it generally increases the amount of material available to carry load.
2. Solar-control security film
Solar-security film combines a thicker safety/security construction with tint, reflectivity or spectrally selective solar control. It can address security, glare, heat and fading in one installation. The tradeoff is appearance: visible light transmission, exterior reflectivity and colour need to be reviewed on the actual glass.
3. Exterior-rated security film
Exterior film is made for the weather-exposed surface. It is useful when the interior face is inaccessible or when a specific two-sided design is selected. An interior product should not be moved outside simply because access is easier; exterior exposure requires a product and warranty intended for that surface.
4. Privacy or frosted security film
A frosted or opaque finish can combine privacy with glass retention, but decorative privacy film is not automatically security film. The exact product must be specified with its thickness, construction, adhesive and intended safety/security use. Compare the separate role of privacy and frosted window film before combining objectives.
5. Anti-graffiti film
Anti-graffiti film is a sacrificial surface designed for replacement after scratching, etching or tagging. It can protect expensive glass and finishes, but it should not be treated as a forced-entry product unless the manufacturer separately documents that application.
6. Ballistic glazing and other hard systems
Security film is not ballistic glazing. The IWFA states that it is unaware of window films with ballistic properties, and 3M explicitly states that S140 is not bulletproof. Threats involving firearms require a purpose-designed, tested glazing assembly rather than a film-only upgrade.
Understanding 14 mil film thickness
A mil is one-thousandth of an inch, not a millimetre. A 14 mil film is nominally 0.014 inches, approximately 0.36 mm.
Thickness describes geometry, not complete performance. It does not reveal stress capacity, elongation, tear behaviour, adhesive performance or layer construction. It also does not explain how the filmed glass connects to the frame.
| Nominal thickness | Inches | Approx. millimetres | Typical role |
|---|---|---|---|
| 4 mil | 0.004 in | 0.10 mm | Basic safety and fragment retention |
| 7-8 mil | 0.007-0.008 in | 0.18-0.20 mm | Heavier safety/security; clear, solar or exterior options |
| 12 mil | 0.012 in | 0.30 mm | Product-specific heavy security/privacy applications |
| 14 mil | 0.014 in | 0.36 mm | Heavy clear interior safety/security film |
These are categories, not universal prescriptions. The right product depends on the glass, frame, threat, access and the evidence for the complete configuration.
Our security window film thickness guide explains how Clear Guard currently positions 14 mil interior, 7 mil exterior and privacy options.
Download the film-family chart data (CSV)
Within each manufacturer's clear-film family, published tensile stress stays constant while break load per inch rises with gauge. That helps explain why thickness affects a strip's total break load without turning gauge into a complete-window security rating.
How a security-film glazing system is built
A retrofit security system can include five distinct elements:
- Existing glass: annealed, heat-strengthened, tempered, laminated or insulating glass, with a specific thickness and pane size.
- Film-to-glass adhesive: generally a pressure-sensitive acrylic adhesive on these two products. It bonds the film to the glass fragments.
- Security film: one or more polymer layers - commonly polyester in this product category - plus coatings, depending on the product.
- Perimeter attachment: a wet-glaze sealant or another manufacturer-approved attachment that transfers load from the filmed glass to the frame.
- Frame and anchorage: aluminum, vinyl, wood or another frame system, including its condition and connection to the building.
If the film retains the broken glass but the sheet pulls free of the frame, the opening can still clear. If the attachment holds but the frame is weak or poorly anchored, the load can move to the next weakest component. That is why the installed system - not the film alone - must match the intended threat.
XPEL Security Clear 14 mil vs 3M Safety S140: Specification table
| Specification | XPEL VISION Security Clear 14 mil | 3M Safety & Security S140 | What the comparison supports |
|---|---|---|---|
| Nominal film thickness | 14 mil / 350 microns | 14 mil / 0.36 mm | Equivalent nominal gauge |
| Application surface | Interior | Interior only | Comparable |
| Construction | Multi-layer | Multi-ply (3) | Both layered; only 3M states ply count here |
| Glass adhesive | Acrylic pressure-sensitive | High-mass, UV-stabilized pressure-sensitive acrylate | Same broad adhesive class; formulations are product-specific |
| Tensile strength | 30,000 psi | 25,000 psi, ASTM D882 | XPEL's published nominal value is 20% higher |
| Break strength | 420 lb/in | 350 lb/in, ASTM D882 | XPEL's published nominal value is 20% higher |
| Puncture strength | 230 lb | Not published in reviewed current S140 sheets | No two-sided comparison is possible |
| Elongation at break | Not published in reviewed 14 mil specification | Greater than 125%, ASTM D882 | 3M publishes a value XPEL does not list here |
| Peel strength | Greater than 2,500 g/in | Greater than 2 lb/in in 3M's Safety Series family card | Do not rank without confirmed test equivalence |
| Visible light transmission | 88% on 1/8 in clear glass | 85% on 1/4 in clear glass | Directionally similar; different glass basis |
| Visible reflection | 9% exterior / 9% interior | Not more than 10% | Very similar published appearance |
| UV | 99% blocked, 300-380 nm | Less than 1% transmitted, 300-380 nm | Effectively the same stated range/result |
| Solar heat gain coefficient | 0.81 on 1/8 in clear glass | 0.78 on 1/4 in clear glass | Not a strict head-to-head test |
| Safety-glazing statement | Specification records PASS for ANSI Z97.1-2004 and CPSC 16 CFR 1201 | ANSI Z97.1 Class A, Unlimited, 400 ft-lb | Both publish safety-glazing performance; editions/configurations differ |
| Burglary/forced-entry statement | Specification records PASS for UL 972 | Helps delay intruders; 3M proprietary break-and-entry tests referenced | Request underlying reports/configurations before project-specific claims |
| Perimeter attachment | XPEL specification identifies wet glaze such as DOWSIL 995 | 3M IPA is required for all S140 break-and-entry applications | Use the approved complete system |
Source basis: The XPEL 14 mil specification was issued December 17, 2024. The 3M S140 data sheet is Revision C from January 2025. The 3M S140 technical specification is Revision D from January 2025. Values are nominal or typical as identified by the manufacturers.
What tensile strength tells you
Tensile strength is stress at failure: force divided by specimen cross-sectional area. It helps characterize film material, not the total force a window can sustain. ASTM notes that results vary with specimen thickness, preparation, test speed, grips and extension measurement. Data may not transfer to applications with a very different force-time scale. See ASTM D882's significance and use.
What break strength tells you
Break strength in lb/in is force per unit specimen width at break. Because it reflects the tested strip's construction and thickness, it is often more intuitive than stress when comparing same-gauge films. XPEL's 420 lb/in and 3M's 350 lb/in are expressed in the same unit and are both nominal film values. They still do not measure a framed pane under repeated tool attack.
What puncture strength tells you
Puncture testing measures resistance to a defined probe and test setup. XPEL publishes 230 lb for its 14 mil film. The reviewed current S140 documents do not publish an equivalent value. The defensible conclusion is that XPEL discloses a puncture value and 3M does not in these sheets. Assigning 3M a zero or inferring its result would not be defensible.
What elongation tells you
Elongation at break describes how far a specimen stretches before failure under the stated tensile test. 3M publishes greater than 125% for S140. XPEL's public 14 mil specification reviewed here does not list an elongation value. Missing public data is not proof of poor performance; it is a documentation gap for this comparison.
Optical performance: Both are clear, but the test glass differs
XPEL lists 88% visible light transmission on 1/8-inch clear float glass. 3M lists 85% on 1/4-inch clear glass. Both list approximately 99% UV blocking over 300-380 nm, and both have low visible reflectivity.
The three-point VLT difference is small, but the glass substrates differ. Check the glass type, thickness and measurement method before comparing two manufacturers. Also confirm whether each value describes film alone or film on glass.
Neither product is primarily a solar-control film. XPEL lists 19% total solar energy rejected. The S140 sheet lists 22% on 1/4-inch clear glass. If heat or glare control is central, a solar-security product may fit better. A separate solar-film specification may also be appropriate. Our commercial window film VLT comparison explains why transmission and clarity need separate review.
Why perimeter attachment matters
The pressure-sensitive adhesive bonds film to glass. A perimeter attachment connects the filmed glass sheet to the frame. Those are different jobs.
With a basic “daylight” installation, film stops near the glazing seal or gasket. A wet-glaze bead does not structurally connect it to the frame. This may suit some safety or fragment-retention applications under the manufacturer's instructions. The perimeter load path becomes critical for forced-entry work.
A wet-glaze attachment uses a compatible structural or impact-protection sealant over the perimeter of the film and onto the exposed frame. Properly designed, the cured bead creates a flexible bridge:
frame -> attachment sealant -> security film -> retained glass fragments
The bead has to contact enough clean, compatible film and enough sound frame surface. It also needs adequate depth and a shape that can carry deformation. Brand, surface preparation, primer requirements, gasket conditions, tooling, temperature, humidity and cure time can all matter.
Wet glazing explained
Wet glazing is a liquid-applied perimeter attachment that cures into a flexible elastomeric bond between the filmed glass and the frame. It is commonly tooled into a triangular profile so it overlaps both surfaces and has useful depth at its centre.
Wet glazing should not be confused with the narrow cosmetic caulk line used to finish ordinary trim. In a security-film system, the bead is a load-transfer component. Its specified overlap and depth are functional dimensions.
Other attachment approaches
- Daylight installation: film terminates at the visible glass edge without a structural perimeter attachment.
- Wet-glaze attachment: compatible sealant overlaps both the film and frame.
- Mechanical attachment: a manufacturer-approved cap, batten or profile mechanically secures the filmed pane to the frame. Availability and test evidence vary by system.
The correct option is the one documented for the exact film, glass, frame and intended threat.
DOWSIL 995 vs 3M IPA: Published properties
XPEL's public 14 mil specification identifies a wet glaze “such as” DOWSIL 995. The Clear Guard assembly described here uses DOWSIL 995. An exclusive-product claim would require a current dealer bulletin or project approval. For S140 break-and-entry applications, 3M expressly requires 3M IPA.
The two sealants publish strikingly similar typical cured properties. That supports a conclusion of comparable listed material properties, not a conclusion that the products are identical or interchangeable.
| Property | DOWSIL 995 | 3M IPA | Reading |
|---|---|---|---|
| Product description | One-part, neutral-cure structural/protective glazing silicone | Window-film attachment or wet-glaze sealant | Similar function in these assemblies; different system ownership |
| Typical cure time at 25 C / 50% RH | 7-14 days | Less than 14 days | Similar published range |
| Full adhesion | 14-21 days | Less than 21 days | Similar published timing |
| Tack-free time | 65 minutes | 60-70 minutes | Essentially the same |
| Working time | 10-20 minutes | 10-20 minutes | Same |
| Sag/slump | 0.1 in | 0.1 in | Same |
| Specific gravity | 1.339 | 1.4 | Very close |
| VOC | 30 g/L | 30 g/L | Same |
| 21-day tensile at 25% elongation, ASTM C1135 | 43 psi | 43 psi | Same |
| 21-day tensile at 50% elongation, ASTM C1135 | 65 psi | 65 psi | Same |
| 21-day ultimate tensile, ASTM C1135 | 170 psi | 170 psi | Same |
| Shore A hardness | 40 | 40 | Same |
Download the attachment-sealant chart data (CSV)
Dow's current technical data lists 525% ultimate elongation and 49 ppi tear strength. It also lists 40 ppi peel strength and plus/minus 50% joint movement under its stated tests. Dow describes 995 as a structural and protective glazing sealant. Its specifications include ASTM C1184 and ASTM C920 Class 50.
3M's IPA specification describes IPA as the attachment component for specified 3M film systems. IPA is not tested as a stand-alone product for pressure cycling or blast mitigation. Check the film-plus-IPA combination in the individual film documentation.
Selecting DOWSIL 995 or 3M IPA
The data reviewed here does not support a blanket winner. Their listed 21-day tensile values and hardness match. DOWSIL 995 has broad structural/protective-glazing documentation; 3M IPA has the advantage of being the expressly required attachment within 3M's break-and-entry film system.
The right conclusion is:
DOWSIL 995 and 3M IPA have closely comparable published cured material properties, but each must be used within the film manufacturer's approved and tested installation.
Do not claim that IPA is relabelled DOWSIL 995, and do not substitute one for the other on a specified project without written approval.
Bead overlap and installation details
Overlap is the cured attachment width covering the film and frame. “3/8 inch on both” requires that much contact on each eligible surface. Glazing stops or compression gaskets may not count where the specification excludes them.
XPEL's published wet-glaze guidance
The XPEL Security Clear 14 mil specification identifies wet glazing such as DOWSIL 995 and states:
- Blast mitigation: minimum 1/2-inch overlap on both film and frame, or 3/8-inch depth at bead centre.
- Impact resistance or glass retention: minimum 3/8-inch overlap on both film and frame, or 1/4-inch depth at bead centre.
- Open-cell backer rod may fill a void when gaskets are removed.
- Existing gaskets may be cut back only with architect or project-leader approval.
- Compatibility testing with the wet-glaze product is recommended.
- The bead should be tooled to maximize depth with a triangular profile, and masking tape should be removed within the sealant's working time.
3M's published IPA guidance
The general 3M IPA specification states:
- Blast mitigation: minimum 1/2-inch overlap on both frame and film.
- Windborne-debris protection: minimum 3/8-inch overlap on both frame and film.
- An adhesion test can be performed on the frame; cohesive failure is acceptable, while a clean peel indicates unacceptable adhesion.
- Surfaces must be prepared according to 3M's instructions.
- The bead should be tooled into a relatively triangular profile.
- Masking tape should be removed within 10 minutes after application.
- The product should cure for at least 14 days before the installation is treated as complete under the specification.
Important S140 limitation: 3M's S140-specific January 2025 specification says S140 is not approved for windstorm or blast mitigation. The general IPA bead dimensions for those threats should therefore not be repurposed as an S140 break-and-entry specification. For S140 break-and-entry work, the authorized installer must follow the exact current 3M instructions for that application.
Installation questions that affect performance
- Does the film extend close enough to the frame for the prescribed overlap?
- Is the frame surface structurally sound, clean and compatible with the sealant?
- Do gaskets obstruct contact with the load-bearing frame surface?
- Is primer required for this exact substrate?
- Is the bead wide and deep enough after tooling, including at corners?
- Were the manufacturer's temperature, humidity, working-time and cure-time limits followed?
- Is the frame itself adequately attached to the wall or door assembly?
- Does the submitted test report match the actual glass, pane dimensions, film, attachment and frame?
These are not cosmetic details. They determine whether load can travel from the damaged glass into the frame.
A Clear Guard technician can review the glass, frame and attachment path before recommending a film system. Request an assessment for a home, storefront or commercial property.
Raw material strength vs tested system performance
This is the most important distinction in any XPEL-versus-3M comparison.
Raw film tests answer component questions
ASTM D882 tensile and break results characterize strips of thin plastic sheeting under controlled conditions. Puncture, peel, elongation and abrasion tests answer other component-level questions. These values are useful for quality control and comparison when the procedures and specimens are aligned.
They do not reproduce a person repeatedly striking a framed patio door with a tool.
Safety-glazing tests answer injury-mitigation questions
ANSI Z97.1 and CPSC 16 CFR 1201 concern the safety performance of architectural glazing under defined impacts. They are relevant to fragment retention and human impact. They are not automatically forced-entry tests.
Forced-entry tests answer a different question
A forced-entry test defines an attack sequence, tools, timing, opening criterion and specimen. XPEL's 14 mil specification records “PASS” for UL 972. 3M describes S140 as tested through its proprietary break-and-entry program. It says S140 with IPA helps delay intruders. UL 972 covers burglary-resisting glazing material under a defined hit-and-run scope. It excludes glazing and mounting methods. The XPEL pass line does not prove that every existing frame with DOWSIL 995 passed as a complete assembly.
Those statements are useful, but the public sheets do not provide enough common test detail to rank breach time directly. Before making a project-specific claim, request the report or certification showing:
- standard and edition;
- laboratory and report number;
- glass type, thickness and size;
- film side and cure condition;
- attachment product, overlap and depth;
- frame type and anchorage;
- attack tools, sequence and pass/fail criterion; and
- whether the tested assembly matches the proposed installation.
Why “20% stronger film” does not mean “20% safer window”
The 20% difference is a valid arithmetic comparison of two nominal film values. It is not a system multiplier. Failure may occur in the glass, film, film adhesive, attachment bead, gasket, frame or frame anchorage. The governing failure mode can change from one window to another.
Limitations of spec-sheet comparisons
- Nominal and typical values are not guaranteed project results. Both manufacturers qualify their published data.
- Test substrates differ. XPEL's optical table uses 1/8-inch clear glass; 3M's uses 1/4-inch clear glass.
- Test methods are not always shown for every value. Units that look similar can still come from different procedures.
- Missing data is not zero. A blank puncture or elongation cell means “not published in the reviewed sheet,” not “failed.”
- Standards have editions and configurations. A “PASS” line without the report does not show all test conditions.
- Regional claims can differ. A European certification or U.S. product approval may not establish compliance for an Ontario project.
- The existing window is part of the result. Glass, pane size, edge clearance, frame material, gaskets and anchorage remain site-specific.
- Installation and cure are variables. Cleanliness, pressure, moisture removal, sealant tooling and time before loading affect the finished system.
Residential vs commercial security-window-film use cases
| Setting | Common priorities | Specification focus | Typical decision risk |
|---|---|---|---|
| Homes | Invisible protection, patio doors, sidelights, accessible ground-floor glass, fragment retention | Glass compatibility, interior/exterior access, frame condition, egress, warranty, installer quality | Buying thickness without assessing the frame or highest-risk openings |
| Retail storefronts | Smash-and-grab delay, after-hours exposure, clear product visibility | Large-pane dimensions, perimeter attachment, mullions, door hardware, replacement plan | Treating film as a substitute for locks, alarms, shutters or response procedures |
| Offices and multi-unit buildings | Occupant safety, spontaneous breakage, lobby/entrance security | Pane schedule, safety-glazing needs, access, substrate testing, documentation | Applying one detail to many different frame types |
| Schools and public facilities | Defined threat assessment, life safety, controlled procurement | Complete test reports, professional/security consultant input, compatible egress and emergency plans | Using marketing demonstrations in place of a matched tested assembly |
| High-risk commercial or government sites | Blast, wind, civil disturbance or specified forced entry | Engineer-designed and independently tested system; exact standard and configuration | Substituting components or bead dimensions outside the tested design |
Residential selection

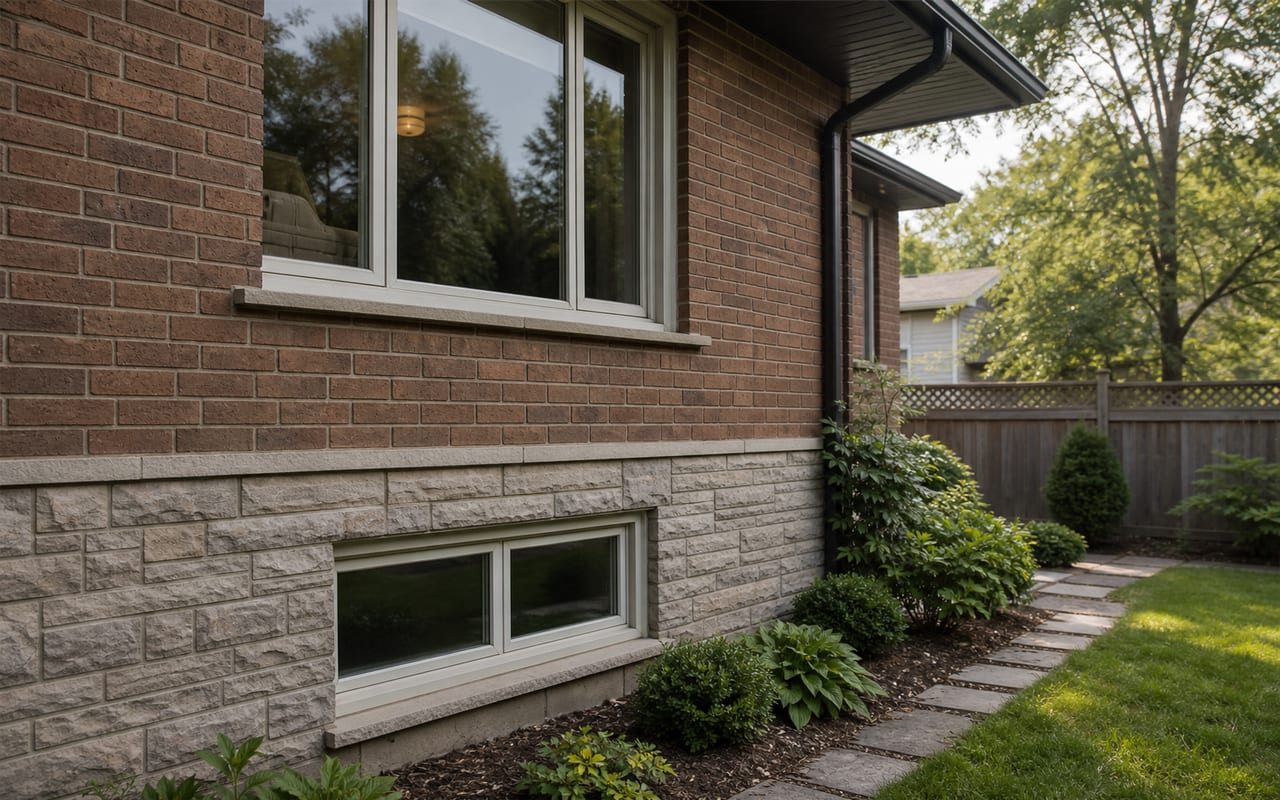

For a home, prioritize accessible patio doors, door sidelights, basement windows and ground-floor panes that create a practical route inside. Security film should complement sound locks, door reinforcement, lighting, detection and a response plan. It should not compromise required egress or be presented as a guarantee against entry. Our comparison of security window film versus window bars covers visibility, egress and maintenance tradeoffs.
Film-to-glass compatibility matters on insulating glass, tinted glass, laminated glass and low-e configurations. The installer should identify the glass and consult the current manufacturer chart rather than assume every 14 mil film belongs on every pane.
Commercial selection
Commercial projects need a repeatable pane schedule and a written basis of design. Record the film, attachment, bead, glass, frame, access, substrate preparation, mock-up, visual acceptance criteria, warranty and test evidence. The commercial window film quote checklist provides a useful procurement framework. Where security, blast or wind performance is a contractual requirement, the consultant should approve the complete assembly and any substitution in writing.
Choosing a 14 mil security film
Reasons to specify XPEL Security Clear 14 mil
- Higher published nominal tensile and break strength in this direct 14 mil comparison.
- Published puncture-strength value.
- Clear public wet-glaze guidance that identifies a product such as DOWSIL 995 and provides impact/glass-retention overlap dimensions.
- 88% published VLT and low reflectivity.
- XPEL's specification records passes for ANSI Z97.1, CPSC 16 CFR 1201 and UL 972, subject to verification of the applicable report and tested configuration.
Reasons to specify 3M Safety S140
- Explicit three-ply construction and published elongation at break.
- Clear 3M system requirement pairing S140 with 3M IPA for break-and-entry work.
- Detailed manufacturer specifications for film, authorized-dealer installation and attachment material.
- A familiar basis of design where a project or consultant already requires a 3M system.
Clear Guard's position
For a Clear Guard XPEL installation, XPEL Security Clear 14 mil with the specified DOWSIL 995 wet-glaze attachment is a technically strong option. Its published film data is excellent, and the attachment sealant is a documented structural/protective-glazing product.
That is not the same as claiming that every XPEL installation is superior to every 3M installation. If a tender requires 3M S140 with 3M IPA, the specified system should be installed or formally approved for substitution. For either brand, the right design begins with the actual glass and frame.
Security window film installer checklist
Ask any installer or bidder to identify:
- Exact manufacturer and product code.
- Nominal thickness and application surface.
- Glass type, thickness, coatings and insulating-glass configuration.
- Whether installation is daylight, wet-glazed or mechanically attached.
- Attachment product, primer, overlap, depth and expected cure time.
- Frame material, condition and anchorage assumptions.
- The exact test report supporting the proposed threat claim.
- Whether the tested configuration matches the proposed pane size and details.
- Manufacturer approval, installer authorization and warranty.
- Cleaning, inspection, repair and replacement instructions.
Frequently asked questions
Does security window film stop break-ins?
No film can guarantee that an intruder will never enter. Properly specified and attached security film is designed to retain broken glass and create delay, noise and additional effort. It should be one layer in a broader security plan.
Is XPEL 14 mil stronger than 3M S140?
XPEL publishes 30,000 psi tensile strength and 420 lb/in break strength, compared with 3M's 25,000 psi and 350 lb/in. XPEL's two nominal values are 20% higher. That does not by itself prove greater forced-entry delay for a complete window.
Is DOWSIL 995 stronger than 3M IPA?
Their published typical 21-day tensile values match. They list 43 psi at 25% elongation, 65 psi at 50% and 170 psi ultimate. Both list Shore A hardness of 40. Select the sealant approved for the exact film system rather than substituting by component data alone.
The bottom line
XPEL VISION Security Clear 14 mil and 3M Safety S140 are credible heavy-gauge interior safety/security films. In the manufacturers' current published film data, XPEL leads the two directly comparable raw strength values by 20% and also publishes a puncture result. 3M publishes an elongation value and a tightly defined S140-plus-IPA brand system.
The more important purchasing question is not simply “Which film is stronger?” It is:
Which complete film, adhesive, attachment, glass and frame configuration is documented for this window and threat? Who will install it to that detail?
Clear Guard assesses the glass, frame and entry risk before recommending a system. For a Toronto or GTA home or commercial property, book a security-window assessment. You can also review our security window film service.
Related reading
- Security window film for GTA homes: the complete guide
- Security window film guide: 14 mil interior, 7 mil exterior and privacy options
- Does security window film actually stop break-ins?
Manufacturer and standards sources
- XPEL Security Clear 14 mil 3-Part Specification
- XPEL VISION Safety & Security Series specification table
- 3M S140 Technical Data Sheet
- 3M S140 Technical Specifications
- 3M Safety Series family card
- 3M IPA Technical Specifications
- DOWSIL 995 Technical Data Sheet
- IWFA Safety and Security guidance
- ASTM D882 scope and significance
- UL 972 burglary-resisting glazing material scope
Technical note: Sources were reviewed September 11, 2026. Manufacturer documents, approvals and regional requirements can change. Confirm the current product data, installation instructions, test reports and local requirements before specification or installation.
